Grating Clip – Stainless Steel

  • Sale
  • Regular price $30.90

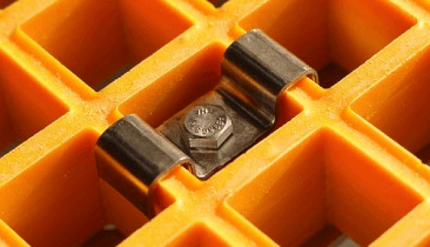

Stainless Steel Grating Clips used for Fibergrate decking with 1-1/2″ square mesh.

Sold in bags of 10

DESCRIPTION

Grating Clip – Stainless Steel

Fasteners/Clip Assemblies For Fiberglass Products

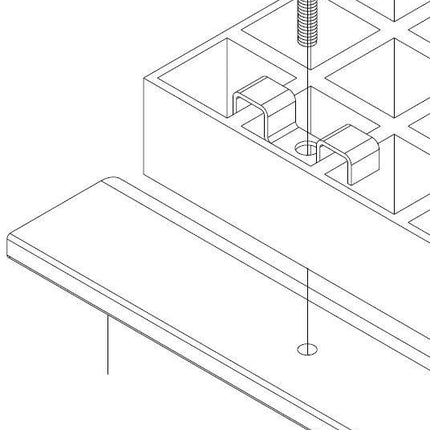

Stainless Steel Grating Clips manufactured from type 316 stainless steel are available for all fiberglass products. Clips can be used to secure grating or plate to the supporting structure or fasten adjacent gratings panels to minimize load-induced differential deflection. The maximum recommended clip spacing is 48 inches on center with a minimum of four (4) clips per piece of the grating.

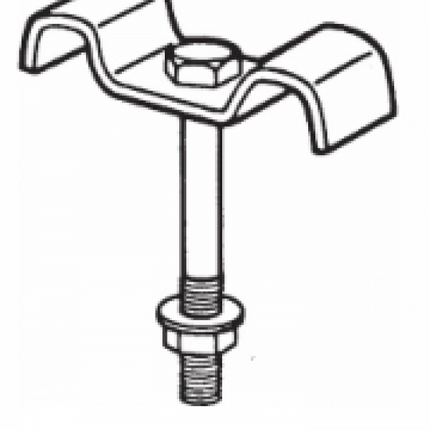

The clips use 1/4″ hardware, either standard bolt or self-tapping screws.

ADDITIONAL INFORMATION

Weight 1 lbs
Dimensions 6 × 6 × 6 in
