Molded Fiberglass Grating

Product Information

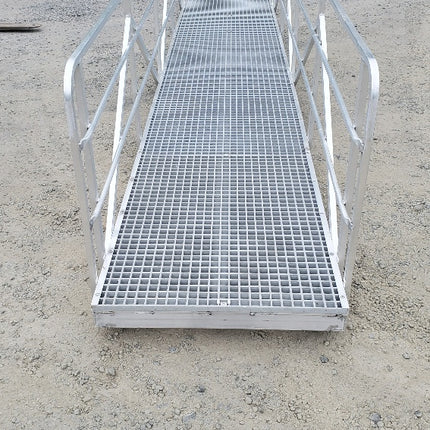

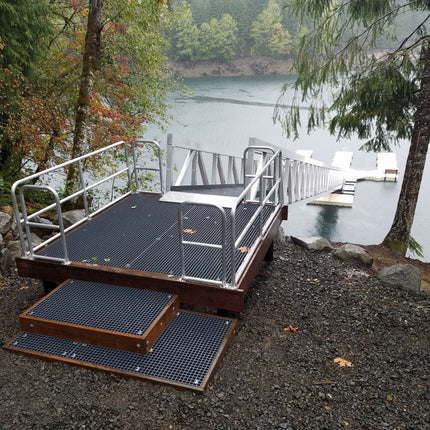

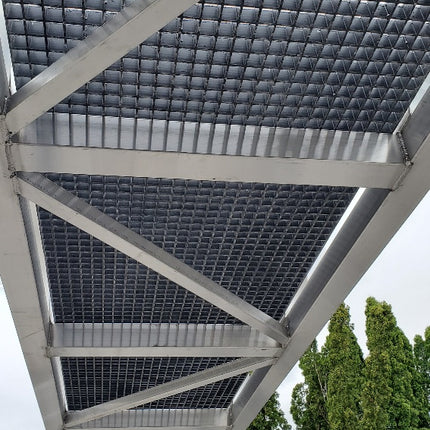

Molded fiberglass decking for docks & gangways is your perfect solution. Light penetration up to 74% depending on option. Some styles are ADA compliant.  Custom colors available.

Popular Panel Sizes: ---3' x 10' ---- -4' x 8' ----4' x 10' ----4' x 12' ---5' x 10'

Depth: 1" & 1.5" options

 Molded FRP Grating

Molded fiberglass grating provides a cost-effective solution and long lasting performance for many industrial and recreational applications. Fiberglass offers superior strength and durability in corrosive environments vs traditional metal grating. Molded grating is constructed in one piece from continuous fiberglass rovings and a wide range of premium polyester and vinyl ester gratings. The process uses a unique three step weaving process that ensures that all glass reinforcements are lined up in the center with bars and protected by the outer resin layers.

All grating is tested by independent third-party companies to standards set forth by the Fiberglass Grating Manufacturer's Council (FGMC).

Corrosion resistance | Slip resistance – Aquagrit | Fire retardant | High strength to weight ratio | Electrically and thermally non-conductive | Low maintenance – no scraping, sandblasting, or painting

Impact-resistant | Easily Fabricated – Easy to cut in the field, lift & install.

RECTANGULAR BAR:

1.5" SQUARE MESH:

3/4" MESH:

Molded Fiberglass Grating

Product form

$995.00

      Product Information

      Molded fiberglass decking for docks & gangways is your perfect solution. Light penetration up to 74% depending on option. Some styles are ADA compliant.  Custom colors available.

      Popular Panel Sizes: ---3' x 10' ---- -4' x 8' ----4' x 10' ----4' x 12' ---5' x 10'

      Depth: 1" & 1.5" options

       Molded FRP Grating

      Molded fiberglass grating provides a cost-effective solution and long lasting performance for many industrial and recreational applications. Fiberglass offers superior strength and durability in corrosive environments vs traditional metal grating. Molded grating is constructed in one piece from continuous fiberglass rovings and a wide range of premium polyester and vinyl ester gratings. The process uses a unique three step weaving process that ensures that all glass reinforcements are lined up in the center with bars and protected by the outer resin layers.

      All grating is tested by independent third-party companies to standards set forth by the Fiberglass Grating Manufacturer's Council (FGMC).

      Corrosion resistance | Slip resistance – Aquagrit | Fire retardant | High strength to weight ratio | Electrically and thermally non-conductive | Low maintenance – no scraping, sandblasting, or painting

      Impact-resistant | Easily Fabricated – Easy to cut in the field, lift & install.

      RECTANGULAR BAR:

      1.5" SQUARE MESH:

      3/4" MESH:

      Size chart
